Oilfields Rig Equipment XJ550 Refurbished Workerover Rig Trucked

Oilfields Rig Equipment XJ550 Refurbished Workerover Rig Trucked

1) Nominal drilling depth (m):  1500 (with 4-1/2" drill pipe)
2) Nominal light repair depth (m):  5500 (with 2-7/8" oil pipe)
3) Nominal major repair depth (m):  3500 (with 3-1/2" drill pipe);
4500 (with 2-7/8" drill pipe)
4) Rated Hook Load (kN): 1000
5) Maximum Hook Load (kN): 1350
6) Engine Rated Power: 540 bhp / 2100 rpm
7) Derrick Height (m): 32
8) Second-floor platform height (m): 17, 18.5, 20 (As required)
9) Traveling System: 4×5
10) Wire Rope Diameter (mm): φ26
11) Turning Diameter (m): 17

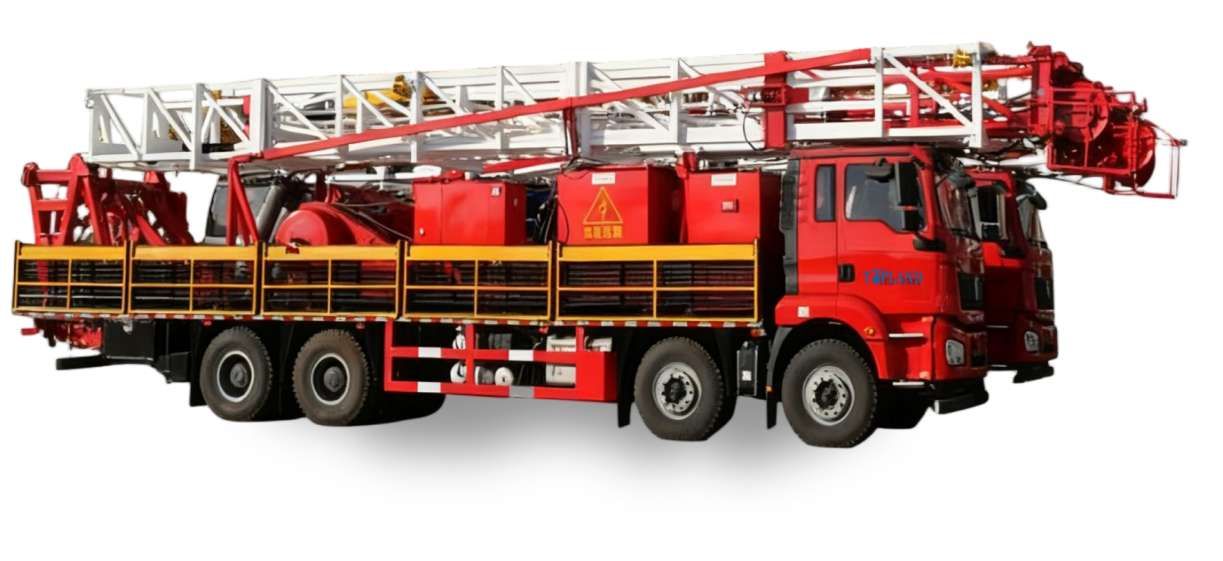

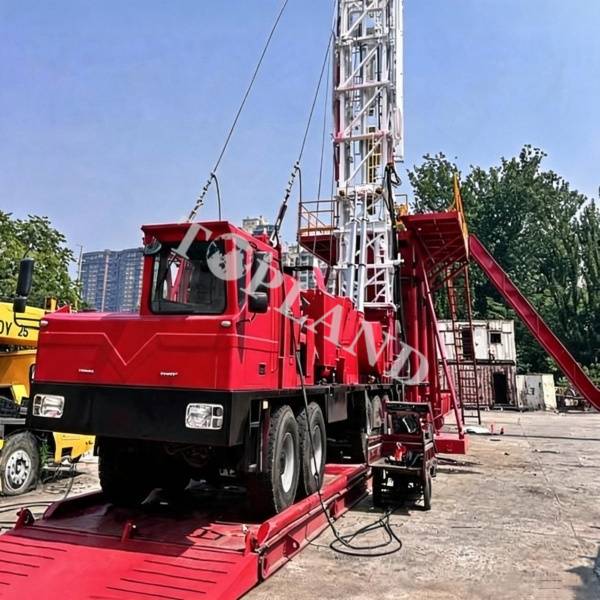

Truck-mounted workover rigs are a new type of rig utilizing mechanical-hydraulic transmission.

With the power system, drawworks, mast, traveling system, and transmission mechanism all integrated onto a self-propelled chassis.

They offer significant advantages in relocation efficiency for workover operations.

These rigs cover a workover depth range from 2,500 to 8,500 meters, powered by drawworks ranging from 250 to 1,000 horsepower.

They are characterized by high operational load capacity, reliable performance, superior off-road capability, easy mobility, and low operational and moving costs.

Furthermore, products can be custom-designed to meet specific requirements for extreme environments such as severely cold, desert, or high-plateau regions.
