XJ650

Refurbished XJ650 Drilling & Workover Rig



Model/PN: XJ650

Brand: RG

Standard: API

Warranty: 12 Months

Place of Origin: China

Application: Oilfields equipments & Spares

Packaging: Export Standard Packing

HS code: 8431499900

Weight: 30000 Kg

Size: 20170 × 2550 × 4000 mm (L × W × H)

Drilling Depth: 2500 m (with 4-1/2

Rated Hook Load: 1200 KN

Mast Height:: 35 m

Color : red, white,



Product Details

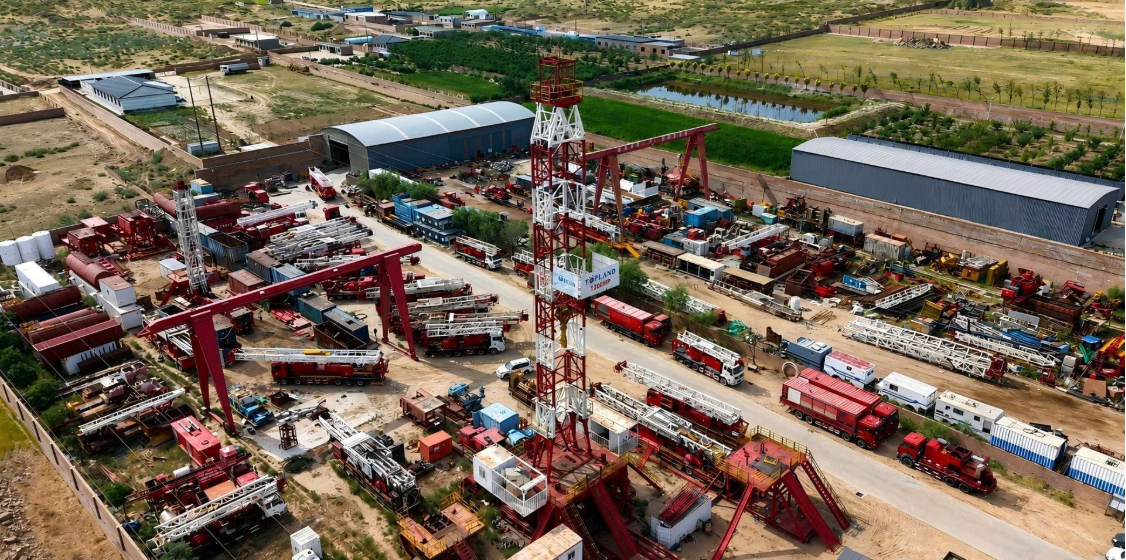

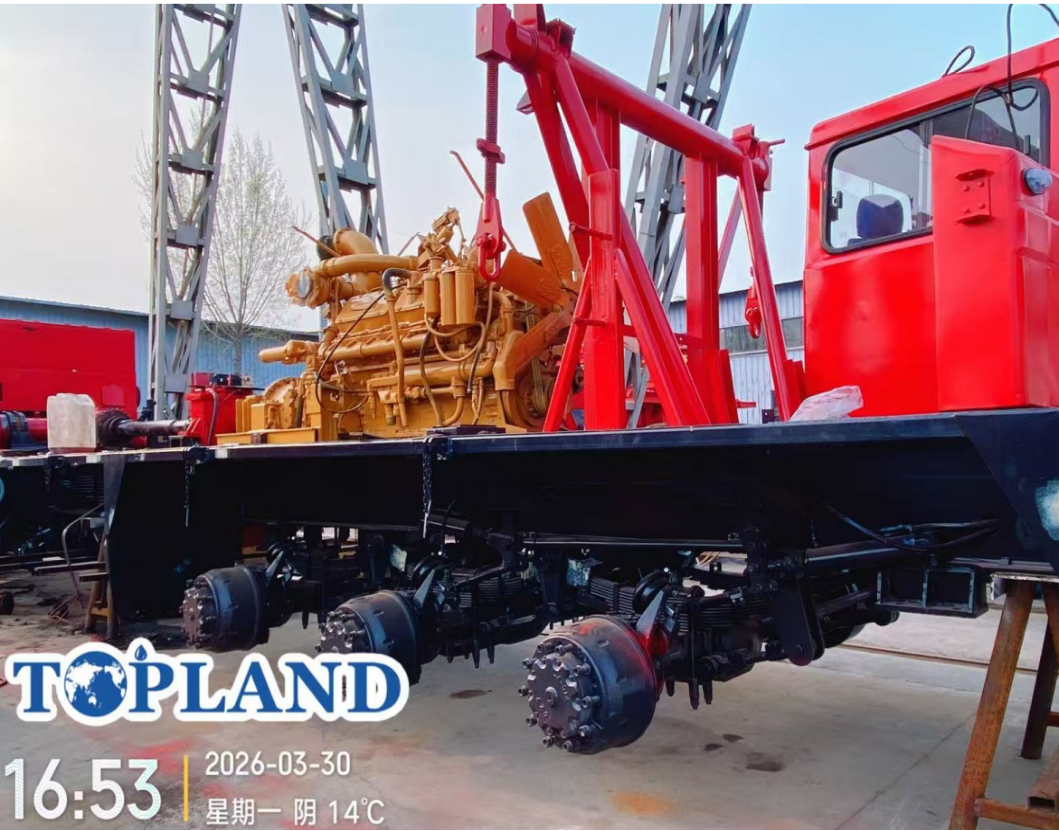

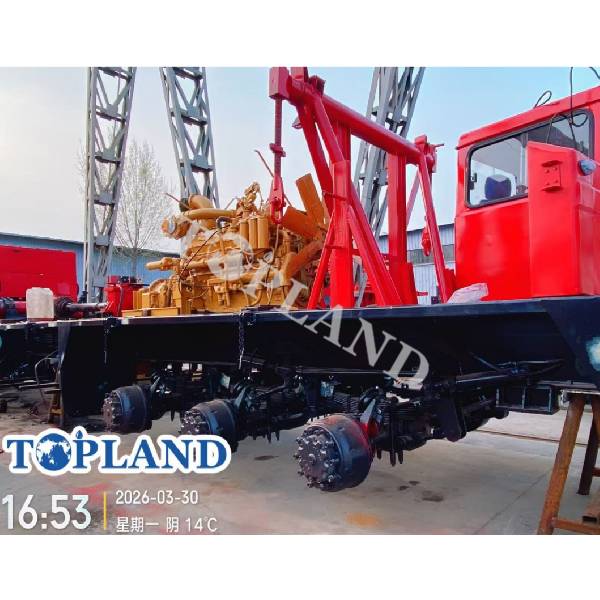

Truck-Mounted XJ650 Drilling & Workover Rig Designed For Onshore Oil And Gas Field Services

Introduction

XJ650 Drilling & Workover Rig is a truck-mounted integrated unit designed for onshore oil and gas field services. With a rated hook load of 1200kN, it is capable of both well workover and shallow drilling operations, including tripping tubing, downhole tool replacement, well flushing, paraffin removal and sand control jobs.

Mounted on a heavy-duty self-propelled chassis, this rig features outstanding mobility for fast relocation between well sites and short rig-up time. Its telescopic mast, reliable drawworks and mature hydraulic-mechanical transmission system guarantee stable lifting performance and safe operation.

Complying with API industry standards, the XJ650 rig adapts well to various harsh field conditions. It balances high power output, easy maintenance and competitive operating cost, widely favoured for medium-deep well intervention and routine well servicing projects globally.

Detailed Specification

S/N MODEL/PN Description Units Qty.
01 Main Description - Drilling Depth: L15
- Nominal Minor Workover Depth: 8500 m (with 2-7/8" Tubing)
- Nominal Major Workover Depth: 5500 m (with 3-1/2" Drill Pipe)
- Rated Hook Load: 1200 kN
- Maximum Hook Load: 1580 kN
- Engine Rated Power: 750 hp
- Mast Height: 35 m
- Height of Racking Platform: 17 m / 18.5 m / 21 m (Customizable)
- Wire Line Diameter: φ29 mm
- Overall Dimension: 20170 × 2550 × 4000 mm (L × W × H)
- Hoisting System: 4×5
- Minimum Turning Circle Diameter: 15 m		 SET 1
02 Chassis - Chassis Type: Heavy Duty
- Overall Dimension: 15031 × 3000 × 2925 mm
- Drive Type: Standard: 12×6
- Max. Road Speed: 55 km/h		 SET 1
03 Diesel Engine (Power Unit) - Engine Model: Caterpillar 3412
- Rated Power: 650 HP
- Max. Output Torque: 1927 N·m/2100 rpm		 SET 1
04 Hydrodynamic Transmission - Transmission Model: 6610 Hydraulic Transmission
- Maximum Input Power: 472 kW
- Maximum Input Torque: 2400 N·m
- Maximum Input Speed: 2500 r/min		 SET 1
05 Transfer Case - Model: FD 100-1 SET 1
06 Mast
(New)		 - Design Standard： In compliance with API SPEC 4F
- Max. Static Load： 1200 kN
- Working Height： 35 m
- Dip Angle： 3.5°
- Maximum Anti-wind Capability: 110 km/h (Wind Scale 10) with full stands
- Height of Racking Platform: 17 m / 18.5 m / 21 m		 SET 1
07 Crown Block - Fast Rope Sheave Diameter: Φ800 mm
- Rope Sheave Diameter: Φ650 mm
- Max. Load: 1600 kN (corrected from original typo "1600N")
- Wire Line Diameter: Φ29 mm		 SET 1
08 Main Drum with Brake - Clutch Model: ATD324H
- Drum Diameter: Φ450 mm with 1" LBS groove
- Brake Drum Diameter: Φ1370 mm
- Brake Shoes: 2 sets
- Wire Line Diameter: Φ29 mm
- Drum Length: 850 mm
- Clutch Type: Axial thrust disc
- Wrap Angle of Brake Band: 345°
- Maximum Fast Line Tension: 210 kN
- Drum Capacity (Full 4 Layers): 270 m
- Max. Output Torque: 55 kN·m		 SET 1
09 Auxiliary Brake - Model: Eaton 324 Brake
- Water Tank Capacity: 1.5 m³		 SET 1
10 Angle Transmission Case - Speed Ratio: 1.667
- Maximum Input Torque: 11000 N·m (11 kN·m)
- Maximum Input Speed: 2500 r/min		 SET 1
11 Driving Box of Rotary Table - Speed Ratio 20/21
- Output Sprocket Teeth Z=25, 1-3/4" Double Row		 SET 1
12 Traveling Hook - Model: YG160
- Maximum Static Load: 1580 kN
- Number of Pulleys: 4
- Hook Rotation Angle: 360°
- Wire Line Diameter: Φ29 mm		 SET 1
13 Drill Floor - Drill Floor Height 4.5 m
- Drill Floor Size (L×W) 6 m × 7 m
- Structure Type 8-column Telescopic
- Clear Height 3.8 m
- Max. Rated Net Load of Rotary Table Beam 1600 kN
- Max. Rated Stand Storage Capacity 20000 ft (4-1/2" Drill Pipe)		 SET 1
14 Wire Line - Main Wire Line Diameter: Φ29 mm
- Guy Wire Diameter: Φ22 mm
- Small Hoist Wire Rope		 SET 1
15 5T Hydraulic Winch - Wire Line Diameter: 16 mm
- Maximum Fast Line Tension: 50 kN		 SET 1
16 Hydraulic System - System Function: Used for vehicle leveling, mast landing & telescoping, operation of small hydraulic winch, and oil supply for workover hydraulic clamp SET 1
17 Pneumatic System - System Composition: Consists of air supply system, drawworks air control system, chassis air circuit system, driller control box, etc. The air supply system mainly includes air compressor, pressure reducing valve, dryer, air cylinder, antifreeze equipment, etc., to supply clean compressed air SET 1
18 Electrical System - System Function: The low-voltage control system is powered by the generator driven by the diesel engine, with a working voltage of 24V. It is mainly used for indicator lights of the operation control system and diesel engine startup, etc.
- Auxiliary Configuration: Low-voltage spotlights		 SET 1
19 Operation Control System - System Composition & Function: Coordinates the actions of the hydraulic system, pneumatic system and electrical system to complete the drilling/workover process. It is mainly composed of operating valves, instruments and other components SET 1
