Refurbished Swivel DSL135

DSL135 Power Swivel | API 8C Certified, Hydraulic Driven, for Workover Rigs and Drilling Rigs

Product Overview

The DSL135 Power Swivel is a rotating drive device installed on the derrick of a workover rig or drilling rig. Driven by a hydraulic motor and reduced through gears, it rotates the center stem to achieve drill string rotation and mud circulation. Designed and manufactured according to API Spec 8C, it is widely used in casing milling, milling operations, drilling cement plugs/bridge plugs, fishing, sidetracking, open-hole drilling, and coring operations.

The DSL135 features hydraulic drive with infinitely variable speed control and high torque at low speeds. The hydraulic system can be powered by electric motor or diesel engine, adopting an integral skid-mounted structure for easy transportation and installation. The center stem bore withstands high-pressure mud circulation, working with the gooseneck and wash pipe to achieve drilling fluid circulation.

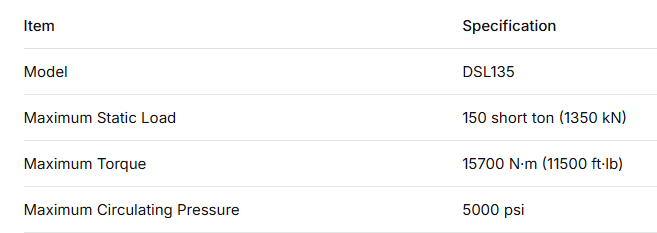

Main Technical Specifications

Key Features

• Conforms to API Spec 8C

• Hydraulic motor driven, infinitely variable speed, high torque at low speeds

• Wash pipe and packing assembly are cartridge type, replaceable on the floor without disconnecting the rotary hose or gooseneck

• Equipped with hydraulic power unit and remote electric control system, integral skid-mounted structure

• Suitable for workover, drilling, coring, and other operations

Applications

• Casing milling and milling operations

• Drilling cement plugs and bridge plugs

• Fishing operations

• Sidetracking and open-hole drilling

• Coring operations
