DG315

Refurbished DG315 Traveling Hook For Drilling Rig Hoisting Tools



Model/PN: DG315

Standard: API

Warranty: 12 Months

Place of Origin: China

Application: Oilfield

Packaging: Export Standard Packing

HS code: 8308100000

Weight: 3420 Kg

Size: 2953×890×680

Maximum Hook Load: 3150kN

Spring Working Stroke: 200mm

Main Hook Diameter: 180mm



Product Details

Product Description

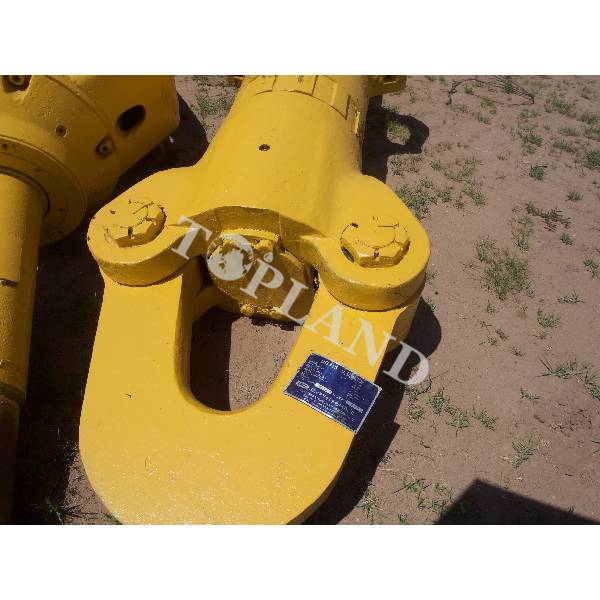

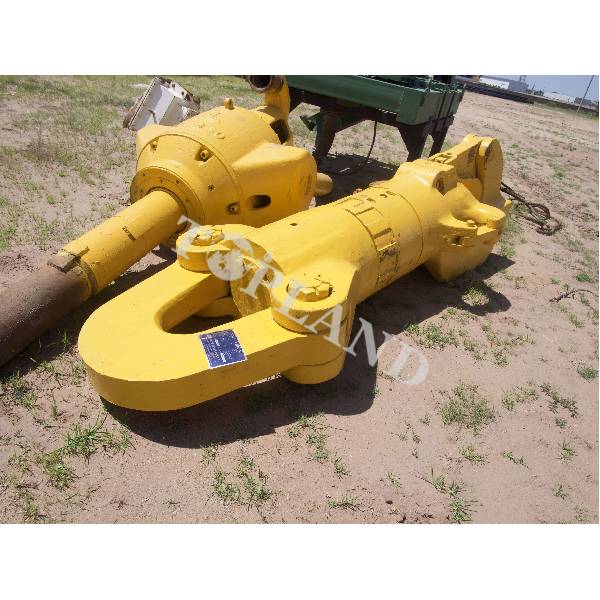

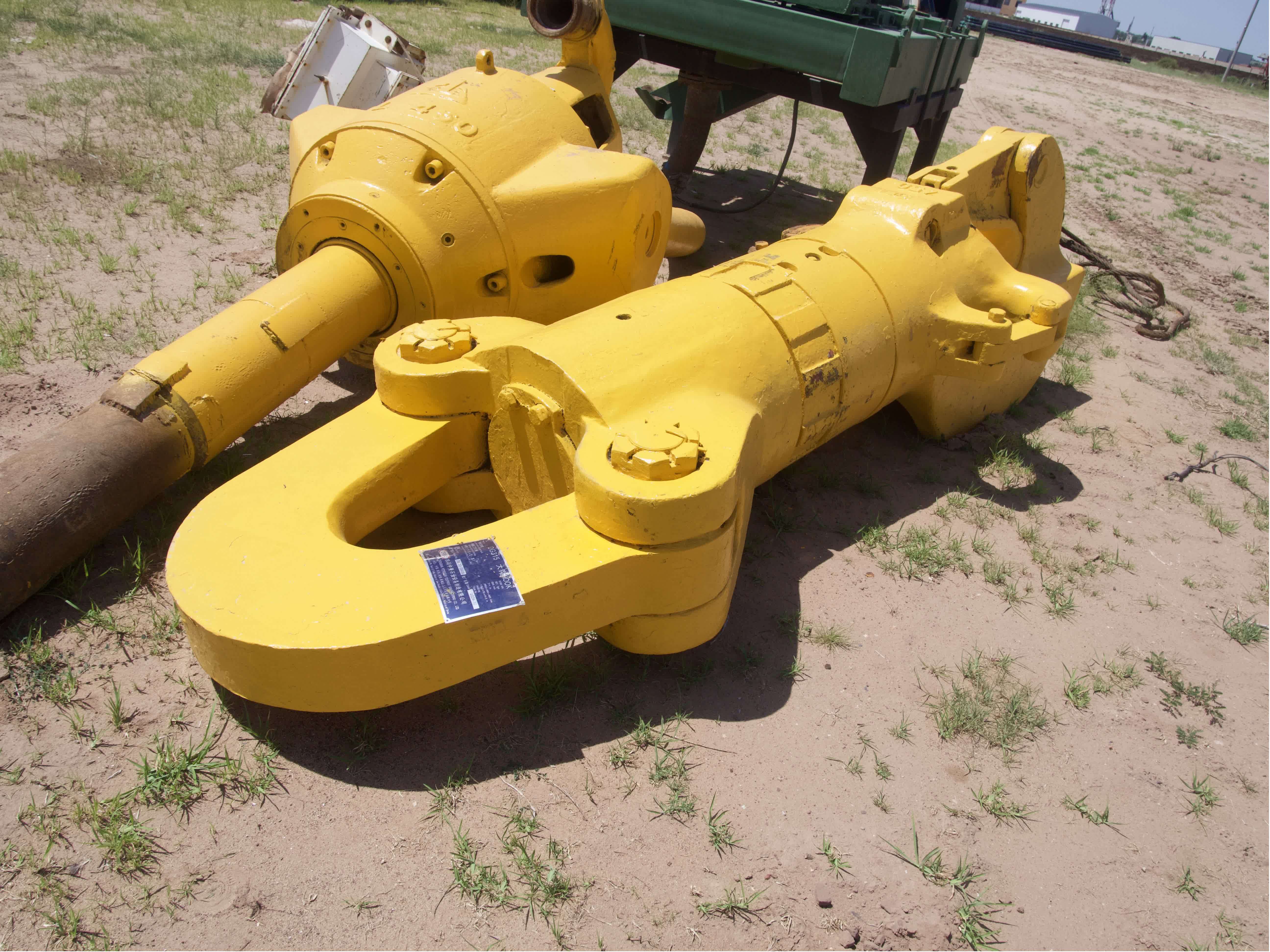

Refurbished DG315 Traveling Hook For Drilling Rig Hoisting Tools, Maximum Hook Load 3150kN

DG315 Traveling Block Hook (3150kN), matched for ZJ50 drilling rig hoisting system, manufactured in compliance with API Spec 8C standard.

It is widely used for onshore oilfield drilling operations, including tripping drill string, running casing and bit replacement.

The main body is integrally cast and forged with special alloy steel.

All critical load-bearing components have passed non-destructive testing (NDT).

Built-in buffer spring assembly and safety latch mechanism on the hook opening prevent accidental unhooking, delivering stable load capacity for harsh field working conditions.


Specification

ModelDG225
DG315
DG450DG675
Maximum hook load, kN2250315045006750
Main hook opening size, mm190220220240
Main hook diameter, mm
160180180228
Spring working stroke, mm
180200200220
Dimensions in length/mm
2545295329503600
Dimensions Width/mm
7208908901110
Dimensions in height/mm7508808801020
