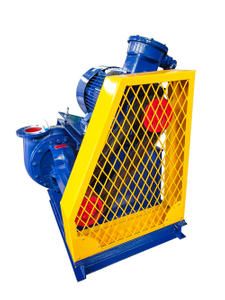

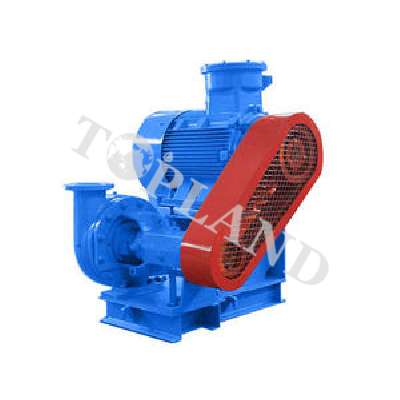

HJQ shear pump is one of the necessary pumps when dealing with drilling fluid. It is used in solid-liquid separation system to improve drilling fluid performance.
Features:
* The overall structure is compact and beautiful
* Using a special impeller and front cutting board, the shearing efficiency is greater than 95%
* The impeller and shear pump are made of stainless steel, and the flow parts are made of high wear-resistant cast iron
* Using a combined composite seal with mechanical seal as the main and packing seal as the supplement.
* The mechanical seal is made of cemented carbide, and its service life is 6 times longer than that of ordinary mechanical seals.
Mud shear pump working principle

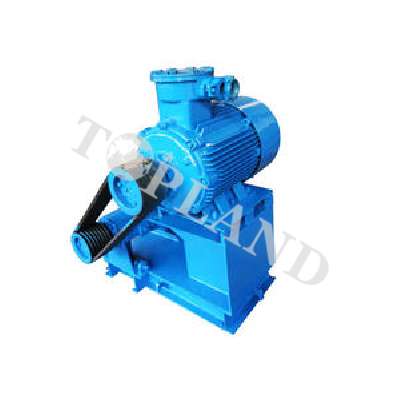

WJQ5×6J shear pump seal adopts very reliable mechanical seal to ensure no leakage. The pump is equipped with a 300mm stainless steel turbine (with guide vanes, impellers, 44 nozzles, 4 collection chambers), and a shear plate, which can produce a small end shear (liquid shear) of more than 25.4m/s. When the liquid flows through the shear pump, half (50%) of the liquid will be sheared twice under the strong push of the turbine collection chamber. The turbo shear pump is installed on a special base and driven by a belt pulley, a narrow V-belt and an explosion-proof motor. A ZHP150 mixing funnel of suitable size is used in conjunction with the shear pump, which forms a perfect shear and water Cooperative system. Due to the improvement of the pump shaft seal, its life is greatly increased.
Note: This pump cannot be used in an active mud system, because the drilling solids and barite in the system will quickly damage the pump when they are sheared.
