3-1/2" OD DRILL PIPE PUP JOINTS, WEIGHT 15.5 PPF, G150, IF CONNECTION; LENGTH 15FT, API 5CT TUBING CASING PUP JOINT

PUP Joint description

Pup joint is kind of pipe without non-standard length to adjust the length of tubular strings to its exact requirement. API casing and tubing pup joint are produced according to API SPEC 5CT standard. Beyond the standard of oil casing pipe is called pup joint, the main oil casing pup joint material: J55, K55, N80, L80, C90, T95 and P110. Anson steel is a professional pup joint manufacturers in the steel line with good reputation.

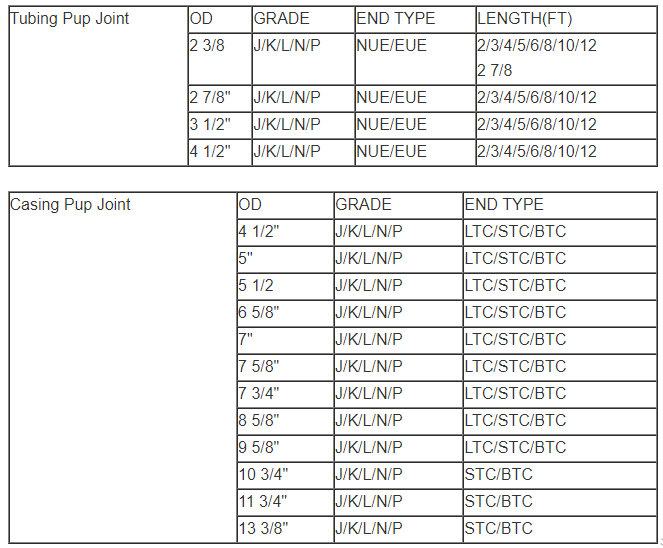

Standard: API SPEC 5CT

Grade: J55/K55/N80/L80/P110/C95
OD of Tubing Joint: From 2-3/8"(60.3mm) to 4.5"(114.60mm);
Pipe end: EUE/NUE
OD of Casing Joint: From 4-1/2"(114.3mm) to 20"(508mm);
Threads: BTC, LTC, STC.
Length: 2,3,4,6,8,10 12 ft (with other lengths available upon request)
Surface treatment: coating
Packing: according to customer specific requirements, or by wooden case or wooden pallet
