7 5/8" ROTARY SLIPS FOR DRILLING CASING, CMS-XL TYPE, API SPEC 7K, WELLHEAD TOOLS, TUBULAR HANDING TOOLS ROTARY SLIPS

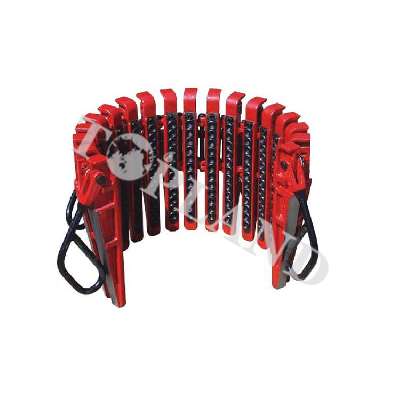

Casing Slips description of Tubular Handing Tools

Slip consists of slip pieces, slip teeth and handles. The shape is a cone, which can be wedged into the inner hole of the turntable; The drill pipe slip is a three-piece structure connected by a hinge pin, and the drill collar slip and the casing slip are a four-piece structure connected by a hinge pin.

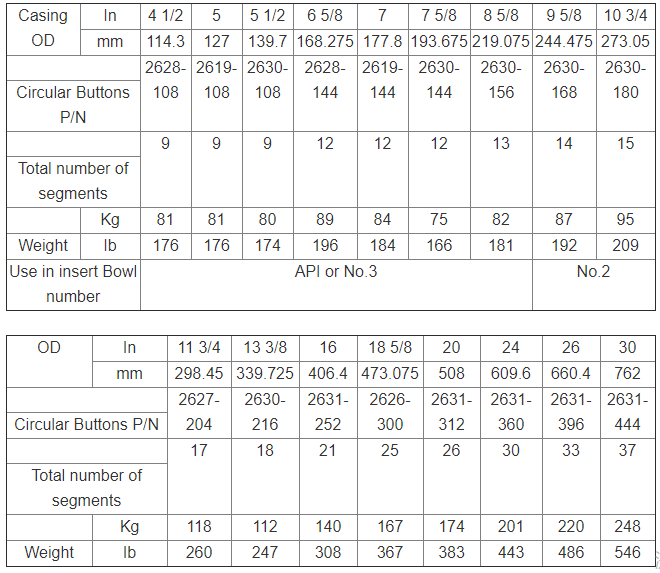

The CMS casing slips can accommodate casing from 4-1/2 to 30in(114.3 to 762mm).They are designed and manufactured in API 7K Slips for well drilling.It is manufactured in a structure of multi-segment pieces with firm structure, light weight , and large holding range, which is easy to fit the changing of the external diameter of the casing pipes due to wear and tear.
