TSUBAKI ANSI G8 80-1 TWO PITCH OFFSET LINK CARBON STEEL ROLLER CHAIN LINK, P/N RS80-1 2POL TRANSMISSION CHAINS

**US$ *0.24EA**

Model/PN: RS80-1-2POL

Brand: TSUBAKI

Standard: API

Lead Time: 30 days

Warranty: 12 Months

Place of Origin: China

Payment Method: T/T

Application: Oilfields equipments & Spares

Packaging: Export Standard Packing

HS code: 8431499900

Purchase Quantity

Add to Wishlist

Product Details

The transmission chains (oil chain, oil field roller chain) is designed for oil drilling and oil production of mud pump drive, engine group, power drive, camshaft, rotary vice axis, rotary table and other design and production. Oil chains can also be used for natural gas extraction, mining equipment, logging machines and ball mills. Safety and reliability are critical to the oil chain.

Featurers of Roller Chains:

1) Type: oil field roller chain

2) Materials: alloy steel

3) Chain No.: 140GA-10

4) Structure: roller chain

5) Function: transmission chain

6) Supply Ability: 25000 Meter/Meters per month

7) Tensile Strength:standard

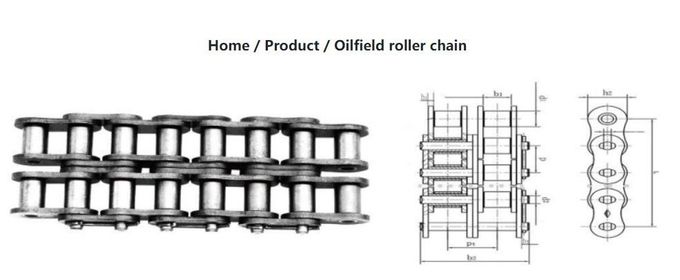

China	GB Chiain No	Pitch	Roller	Inner width of	Pin	Plate	Plate	Array	Pin length	Tensile	Weight/m
NO.	ISO Chain No	Pitch	Diameter	inner link	diameter	thickeness	height	Pitch	Pin length	load	Weight/m
		p	d1(max)	b1(max)	d2(max)	h1	h2	pt	b2	min	q
80GA-1	16S-1	25.4	15.88	15.75	7.94	3.18	24.13	-	36.2	55.6	2.84
80GA-2	16S-2	25.4	15.88	15.75	7.94	3.18	24.13	29.29	65.5	111.2	5.54
80GA-3	16S-3	25.4	15.88	15.75	7.94	3.18	24.13	29.29	94.8	166.8	8.23
80GA-4	16S-4	25.4	15.88	15.75	7.94	3.18	24.13	29.29	124.1	222.4	10.93
80GA-5	16S-5	25.4	15.88	15.75	7.94	3.18	24.13	29.29	153.4	278	13.63
80GA-6	16S-6	25.4	15.88	15.75	7.94	3.18	24.13	29.29	182.6	333.6	16.32
80GA-8	16S-8	25.4	15.88	15.75	7.94	3.18	24.13	29.29	241.2	444.8	21.72
100GA-1	20S-1	31.75	19.5	18.9	9.54	3.96	30.18	-	43.6	86.74	4.25
100GA-2	20S-2	31.75	19.5	18.9	9.54	3.96	30.18	35.76	79.3	173.48	8.31
100GA-3	20S-3	31.75	19.5	18.9	9.54	3.96	30.18	35.76	115.1	260.22	12.36
100GA-4	20S-4	31.75	19.5	18.9	9.54	3.96	30.18	35.76	150.8	346.96	16.41
100GA-5	20S-5	31.75	19.5	18.9	9.54	3.96	30.18	35.76	186	433.7	20.47
100GA-6	20S-6	31.75	19.5	18.9	9.54	3.96	30.18	35.76	222.4	520.44	24.52
100GA-8	20S-8	31.75	19.5	18.9	9.54	3.96	30.18	35.76	293.9	693.92	32.63
120GA-1	24S-1	38.1	22.22	25.23	11.11	4.75	36.2	-	54.1	125.1	6.81
120GA-10	24S-10	38.1	22.22	25.23	11.11	4.75	36.2	45	463.1	125.1	59.63
120GA-1	24S-2	38.1	22.22	25.23	11.11	4.75	36.2	45.44	99.6	250.2	12.12
120GA-3	24S-3	38.1	22.22	25.23	11.11	4.75	36.2	45.44	145.5	375.3	18.06
120GA-4	24S-4	38.1	22.22	25.23	11.11	4.75	36.2	45.44	190	500.4	23.99
120GA-5	24S-5	38.1	22.22	25.23	11.11	4.75	36.2	45.44	235.9	625.9	29.23
120GA-6	24S-6	38.1	22.22	25.23	11.11	4.75	36.2	45.44	281.3	750.6	35.87
120GA-7	24S-7	38.1	22.22	25.23	11.11	4.75	36.2	45.44	326.7	875	41.82
120GA-8	24S-8	38.1	22.22	25.23	11.11	4.75	36.2	45.44	372.2	1000.8	59.63
140GA-2	28S-1	44.45	25.4	25.23	12.71	5.56	42.24	-	58.4	170.27	7.91
140GA-10	28S-10	44.45	25.4	25.23	12.71	5.56	42.24	48.87	498.2	1702.7	76.81
140GA-2	28S-2	44.45	25.4	25.23	12.71	5.56	42.24	48.87	107.2	340.54	15.6
140GA-3	28S-3	44.45	25.4	25.23	12.71	5.56	42.24	48.87	156.1	510.81	23.25
140GA-4	28S-4	44.45	25.4	25.23	12.71	5.56	42.24	48.87	302.7	1021.62	46.2
140GA-5	28S-5	44.45	25.4	25.23	12.71	5.56	42.24	48.87	253.9	851.35	38.55
140GA-6	28S-6	44.45	25.4	25.23	12.71	5.56	42.24	48.87	302.7	1021.62	46.2
140GA-8	28S-8	44.45	25.4	25.23	12.71	5.56	42.24	48.87	400.5	1362.16	61.5
160GA-1	32S-1	50.8	28.57	31.55	14.29	6.35	48.26	-	69	222.4	10.47
160GA-2	32S-2	50.8	28.57	31.55	14.29	6.35	48.26	58.55	127.5	444.8	20.65
160GA-3	32S-3	50.8	28.57	31.55	14.29	6.35	48.26	58.55	186.1	667.2	30.82
160GA-4	32S-4	50.8	28.57	31.55	14.29	6.35	48.26	58.55	244.6	889.6	40.99
160GA-5	32S-5	50.8	28.57	31.55	14.29	6.35	48.26	58.55	303.2	111.2	51.6
160GA-6	32S-6	50.8	28.57	31.55	14.29	6.35	48.26	58.55	361.7	1334.4	61.33
160GA-8	32S-8	50.8	28.57	31.55	14.29	6.35	48.26	58.55	478.8	1779.2	81.68
180GA-1	36S-1	57.15	35.71	35.48	17.46	7.14	54.31	-	77.7	280.2	13.96
180GA-1	36S-1	57.15	35.71	35.48	17.46	7.14	54.31	-	77.7	280.2	13.96
180GA-2	36S-2	57.15	35.71	35.48	17.46	7.14	54.31	65.84	143.6	560.5	27.88
180GA-3	36S-3	57.15	35.71	35.48	17.46	7.14	54.31	65.84	209.4	840.7	41.62
180GA-4	36S-4	57.15	35.71	35.48	17.46	7.14	54.31	65.84	275.3	1121	55.36
200GA-1	40S-1	63.5	39.67	37.85	19.85	7.92	60.33	-	84.5	347.5	17.35
240GA-2	40S-2	63.5	39.67	37.85	19.85	7.92	60.33	71.55	156	695	34.14
200GA-3	40S-3	63.5	39.67	37.85	19.85	7.92	60.33	71.55	227.6	1042.5	50.94
200GA-4	40S-4	63.5	39.67	37.85	19.85	7.92	60.33	71.55	299.1	1390	67.73
240GA-1	48S-1	76.2	47.62	47.35	23.81	9.52	72.39	-	102.2	500.4	25.2
240GA-2	48S-2	76.2	47.62	47.35	23.81	9.52	72.39	87.83	190.1	1000.8	49.81
240GA-3	48S-3	76.2	47.62	47.35	23.81	9.52	72.39	87.83	277.9	1501.2	74.43
240GA-4	48S-4	76.2	47.62	47.35	23.81	9.52	72.39	87.83	365.7	2001.6	99.04
