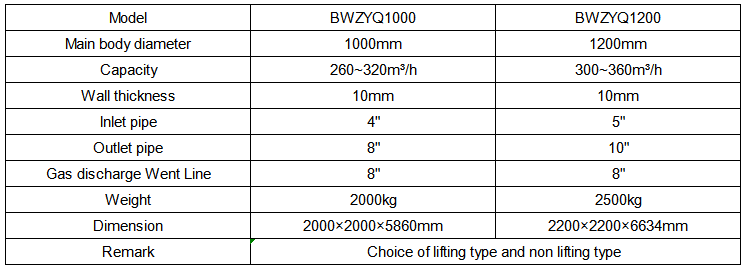

MUD GAS SEPARATOR, MODEL: BWZYQ1000, MAIN BODY DIAMETER: 1000MM, CAPACITY: 260-320M/H, WALL THICKNESS: 10MM, INLET PIPE: 4" (108), OUTPUT PIPE: 6"（159), GAS DISCHARGE VENT LINE: 10"(273), WEIGHT: 2000KG, DIMENSIONS: 2000×2000×5860MM, BASE: 7512×2200×20

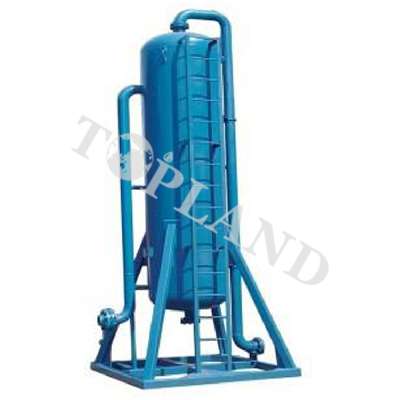

Mud Gas Separator is a special equipment to treat the gas cut drilling mud. Gas cut drilling mud will cause density and viscosity of drilling mud greatly deviate from normal parameters, it can not meet the requirements in drilling well project, especially cause of kick and blowout accident. The combination of mud gas separator and flare ignition device can treat gas cut drilling mud timely, it is a popular used product.

1.Usable Range

It was corollary equipment of dedicated that liquid gas Separator and choke holder header the mostly be used to dispose drilling fluid that cont gas when kick and the well blowout, and also common use to the drilling fluid that cont gas and stay in the pit shaft longtime. Bring the natural gas after purify to out of well site and burning it. The drilling fluid after purify flow into fluid trough of shaker screen and into drilling fluid circulating system.

2 . operating principle

liquid gas Separator was should smash it who immerge bleb of drilling fluid,and then escape gas..Because gravitational effects the drilling fluid after deaerate will into drain mud cavity, at last expel from drain tube. more pure compressed air will expelled from outlet-pipe. In the course of it, the drilling fluid from inlet pipe to hollow axle, and then the umbrella slice cannon of ambient shake the drilling fluid to shell of tank that the umbrella slice is circumstance spurt. By bombard vacuum and the air bubble separator the of action.

3 . structural property

3.1. we adopted cleanup and blowdown to control hi-lo of operating fluid level for ensure constant the fluid level in Separator and averted accumulate grit.

3.2. there is gas separation private channel,so the channel clear, and lift to effect the purify.

3.3. choose lot of splitting technique combination example the centrifugation, physics impact separate, vacuum separation etc.

3.4. feed pipe each bend angle section fixed snubber assembly and mugguard is non-pounding, it can periodic check and replace, prolong service life of equipment.

3.5. service separator is produced and disposal by special material, it can avoidancev break product by hydrogen sulphide.

4. Using

Liquid gas separator is made of suction assembly, drain pipe assembly, ladder, pedestal and tank body assembly. Before used the separator put it on the smoothy earth and connect the suction pipe. The suction pipe connect used 5″national standard flange, one side of flange welding 5″ suction line connect the pump and connect the flange by bolt. Welding a 8″fuller unionat the export of exhaust pipe and welding it with 8″pipeline. Connect drain pipe with 8flange and welding the other side of this flange with 8 pipeline.
