HT65 DRILLING MANUAL TONGS, LONG HANGER. LUG JAW'S TO SUIT 2 7/8" TO 5" PIPE, API 7K STANDARD TUBULAR HANDING TOOLS

HT Manual Tong description of Tunular Handing Tools

Manual Tongs Type HT55 are necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps can adjust different handling sizes of the tongs. They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.

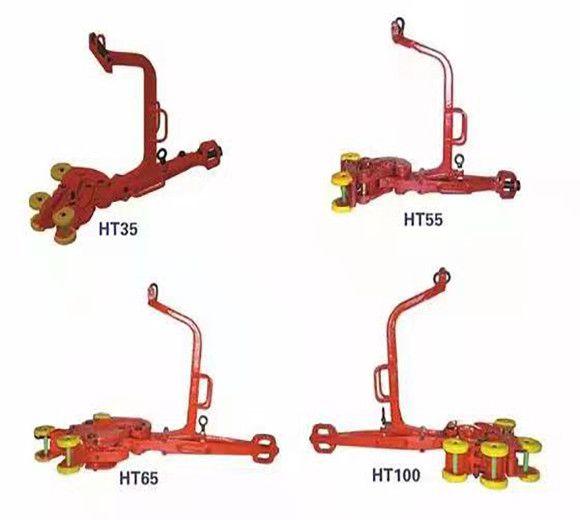

The HT Type manual tong 100% equal to NATIONAL OILWEL VARCO Brand is a tool designed for making up and breaking connections of tubular goods, from light tubing to heavy wall pipe and drill collars. There are 7 types, varying in torque capacity from 10,000 to 200,000 lbs / ft (13,560 - 271,000Nm). Covered sizes from 2 3/8” to 17 “, or 36” (HT50 with extended reach).

Interchangeable lug jaw design permits each tong to handle different sizes of pipe. By installing hinge jaws (available for some models), bigger pipe sizes can be handled.

The tongs can be assembled for either making-up or break-out by removing the hanger and turning the complete HT tong over.
