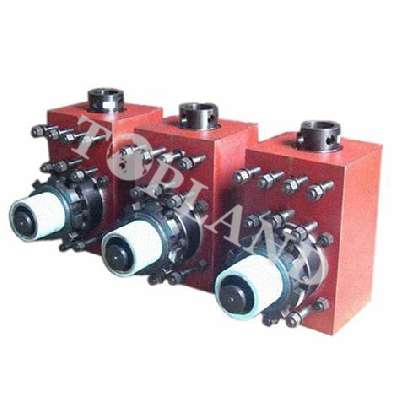

HHF-1000 MUD PUMP

FLUID END WITH BOLTS AND NUTS CODE DRAWING REFERENCE HHF-1000 MUD PUMP,API 7K STANDARD HYDRAULIC CYLINDER WITH BOLTS AND NUTS FOR HHF1000 DRILLING MUD PUMP

US$ *653.65EA

Model/PN: HHF-1000 MUD PUMP

Brand: YIDONG

Standard: API-8C

Lead Time: 5 days

Warranty: 12 Months

Place of Origin: China

Payment Method: T/T

Application: Oilfields equipments & Spares

Packaging: Export Standard Pack

HS code: 8431499900

Weight: 600 kgs

Purchase Quantity

Add to Wishlist



Product Details

Topland's high-strength, triple reduction, forged steel triplex fluid end modules are made from 4135 alloy steel, heat treated for a long working life, machined to perfection and packaged for delivery with anti-corrosion protection.

Features: Completely interchangeable with OEM Premium forged alloy steel Made on CNC boring mills Strict computer controlled heat treat procedures Rigid inspection Rated for all drilling operations under 5000psi, 7500 psi, and 1000 psi pressure.

Hydraulic cylinder is also called the valve box, it is a major part to the fluid end parts. Blank forged by highstrength alloy steel. After heat treated, with multi-channel processes. The three cylinders of each pump is interchangeable. The following key parts: cone sawtooth thread of cylinder head, connect of the curve of all the screw hole and inner cavity.

8P-80 Mud Pump Spare Parts 1291280 Module Discharge With Stud And Nut 1

PARTNO.DESCRIPTIONPARTNO.DESCRIPTION
1291280Discharge Module, Studded1291085Piston Rod Clamp
1290338Suction Module, Studded1291090Crosshead,R.H.& Center
1290174Seal Retainer1291165Liner Bushing
1290175Back Up Ring1291166Liner Clamp
1290178Wedge Adjusting Screw1291182Intermediate Rod Wiper Seal
1290181Wedge Retaining Spring1291190Liner Spray Manifold
1290307Valve Cover1291194Intermediate Rod Baffle
1290308Threaded Ring1291276Sub Rod
1290315Wedge Adjusting Screw Washer1291277Piston Rod
1290342Discharge Connector1291286Discharge Spacer,Studded
1290343Discharge Connector Adapter1292140alve Guide Holder
1290344Suction Module & Wear Plate Seal1292141alve Guide Insert
1290345Discharge Spacer Seal1540126Valve Cover Gasket
1290357Wear Plate1590051Suction Manifold Seal
1291015Crossheadi,R.H.& Center2410031-348Rectangular Packing
1291017Crosshead Liner2410031-427Rectangular Packing
1291028Crosshead Pin6908033Ring Joint Gasket
