VALVE COVER, F/NB/PZ MUD PUMP, HYDRAULIC CYLINDER HEAD COVER, MUD PUMP SPARE PARTS VALVE COVER, API SPEC 7K STANDARD

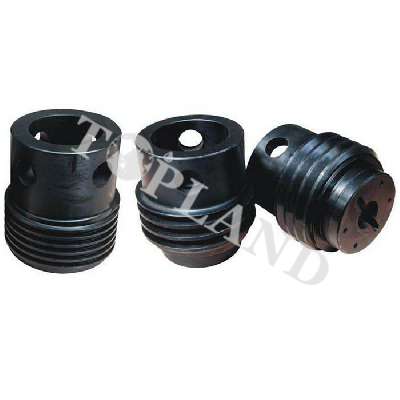

Valve Cover Description of Mud Pump Spare Parts

The valve cover is installed at the top of the hydraulic cylinder, for fixing and centering the discharge valve.
The blank of the valve cover is made of 35CrMo forged piece, with thermal refining 241-285HB. The metric
and inch system difference of valve cap exists at the screw hole, other sizes have no difference.
* Standard: API Standard
* Material: 35CrMo
* Manufacturing Process: Numerical control forging, normalizing

Mud Pump Spare Parts Details,oilfield API mud pump parts cylinder head/valve cover

Fluid End: liner, , piston rubber, valve body, valve seats, valve rubber, liner seals, cylinder head gasket, valve cover seals, piston rod, clamp assembly, valve cover, cylinder head, flange head, cylinder flange, cylinder cover, inhalationcapsules, etc.

Power End: extension rod, crosshead, crosshead pin, cross pin baffle, upper and lower guide plate, packing boxes, seal ring, oil seal lips

Dampener: Dampener diaphragm, pressure gauges, fittings, tees, angle type valve, relief valve, exhaust valve

Other Accessories: JA-3 valve assembly, the small piston, small rod, cushion, 2S gear pumps, 32PL spray pump. Drilling Mud Pump Parts
