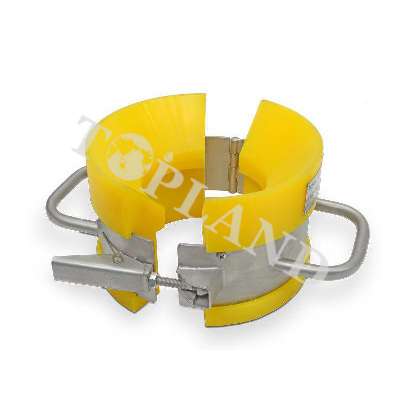

STABBING GUIDE FOR 7" CASING TOOL JONT, MODEL SG 7C, API SPEC 5CT STANDARD, OILFIELD WELLHEAD TOOLS, WEIGHT 35KG

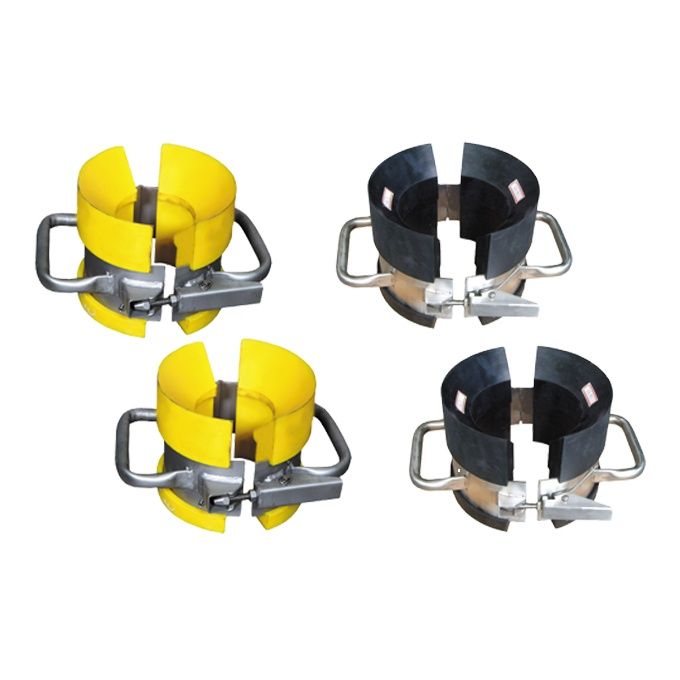

Oilfield Wellhead Equipment Stabbing Guide Description:

Stabbing guides are designed to prevent damage during make up and are manufactured from high-grade steel and durable urethane material, then molded to a profile designed to act as a funnel guide. Models are available for tubing, casing and drill pipe, and in your choice of heavy-duty, standard-duty, or mag-latch configurations.

Generally, stabbing guides are used during making up a string of pipe aligning pin to box threads and preventing face damage and connection failure. A stabbing guide tool is used to facilitate the make up of pipe connections comprising of a diametrally split, hinged and rigid plastics-material infundibulum of high lubricity toughness, and strength adapted to receive and guide a pin connector and having a locating socket adapted to engage a box connector. The tool is spring loaded to closed position by a torsion spring and provided with a pair of hand grip levers to facilitate opening, placement, and removal.

Stabbing Guide Feature

The SG Model Stabbing Guide is mainly used for protecting pipe connectors when the male and female connectors for tubing and casing are stabbed during oil or natural gas well drilling and well repairing operations. This stabbing guide is simple in structure, safe and reliable, and easy for operation.
