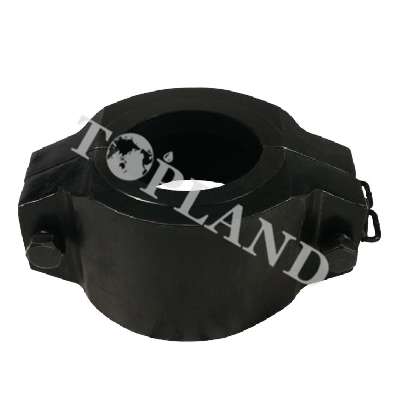

PISTON ROD CLAMP ASSEMBLY FOR F/ NAT 12P160 MUD PUMP, API SPEC 7K STANDARD, MUD PUMP SPARE PARTS ROD CLAMP

Piston Rod Clamp description of Mud Pump Spare Parts:

Clamp assembly functions mainly in connecting the intermediate draw bar in power end system and the piston rod in hydraulic system in the hydraulic end system of the well-drilling slurry pump. It is forged and processed from 35 CrMo. The clamp is applicable to the requirement of high pump pressure in the oilfield and first class technology of well drilling. It is widely used in the oilfield, industrial and mining enterprises for well drilling, well repairing, etc. there are kinds of standards of the diameter for your choice.

Material: ZG35CrMo

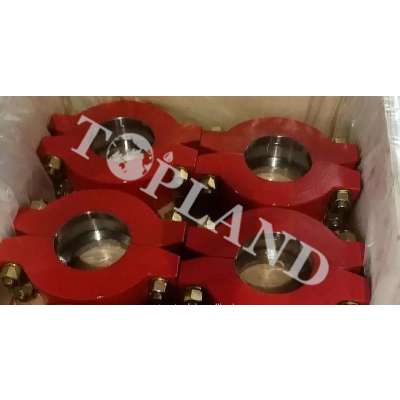

Component: The clamp is composed of two semicircular, two semi matching, processing and assembly, to ensure the inner groove symmetry
Main functions: The clamp makes the extension rod and the piston rod clamped together. It connects the power end and a fluid end.

Clamp Assembly Features of Mud Pump Spare Parts
1.Interchangeable
2.Compact structure,
3.The surface finish is high
