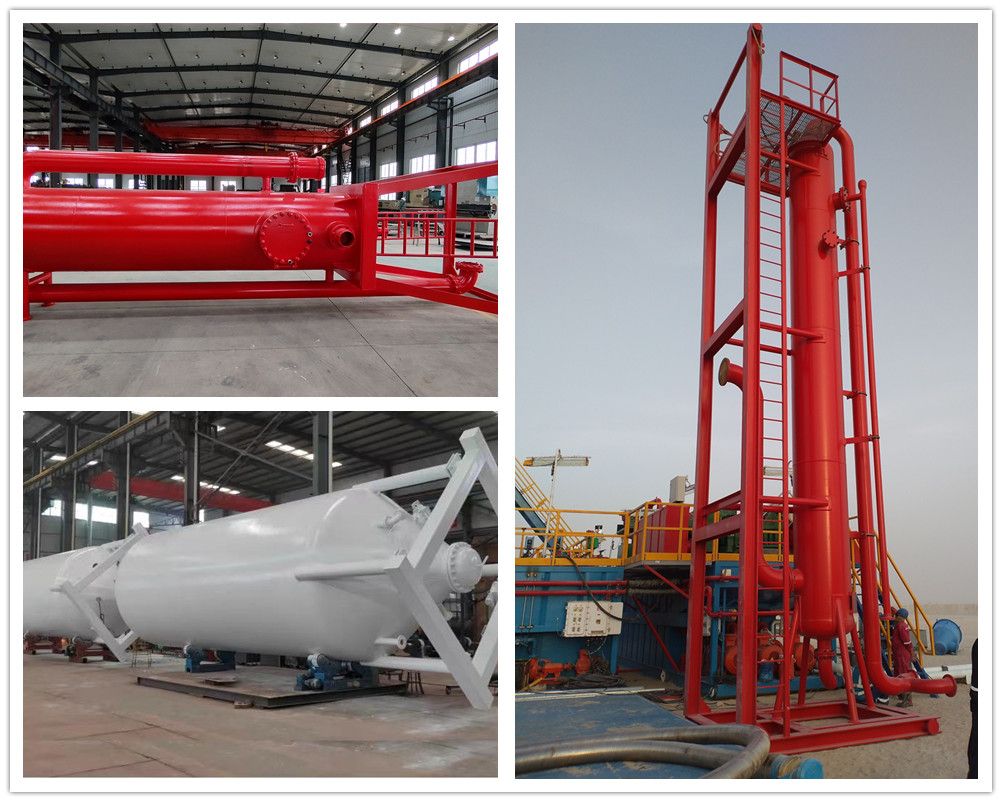

MUD GAS SEPARATOR FOR DRILLING LIQUID DELIVERED TO ABROAD
Topland finished the production of MUD GAS SEPARATOR recently and it has passed the strict quality inspection by our QC. Now they are ready for deliver to our abroad client.
| Model | JYQ-800-1 | JYQ-1000-1 | JYQ-1200-1 |
| Main body diameter(mm) | 800 | 1000 | 1200 |
| Discharge capacity(m3/h) | 260 | 300 | 320 |
| Inlet diameter(mm) | 125/150 | 125/150 | 125/150 |
| Outlet diameter(mm) | 200/250 | 200/250 | 200/250 |
| Exhaust diameter(mm) | 200 | 200 | 200 |
| Working pressure(MPa) | 1 | 1 | 1 |
| Weight(kg) | 2100 | 2800 | 3200 |
| Overall dimension(mm) | 1600×1600×5762 | 2000×2000×6500 | 2200×2200×6500 |
