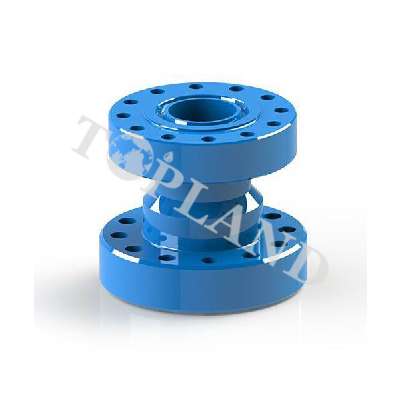

SPOOL 11”-3M X 11”-3M

DRILLING SPOOL, 11"-3M X 11"-3M WITH 3-1/8"-3M INLET X 2-1/16"-3M OUTLET (SS316 INLAY FOR INLET AND OUTLET RING GROOVES ONLY), MATERIAL AISI 4130, T-0, H2S, COMPLETE WITH:
1. 1 EA COMPANION FLANGE, 3-1/8"-3M X 2" LP, AISI 4130;
2. 1 EA COMPANION FLA

US$ *510.42EA

Model/PN: SPOOL 11”-3M X 11”-3M

Brand: SANYI

Standard: API

Lead Time: 45 days

Warranty: 12 Months

Place of Origin: China

Payment Method: T/T

Application: Oilfields equipments & Spares

Packaging: Export Standard Packing

HS code: 8431499900

Purchase Quantity

Add to Wishlist



Product Details

API 6A Standard spacer spool and drilling spool
1. Standard: API
2. Pressure:2000PSI-20000PSI
3. Size: 3 1/8"--26 3/4"



Spacer spool, in accordance with API 6A, have end connectors of the same size, rated working pressure and design. Spacer spool is wellhead sections which have no provision for suspension of tubular members and which may have no provision for sealing of tubular members


We supply the spacer spool in all sizes and pressure ratings suitable for Well Head extension, B.O.P. spacing, and Choke, Kill, and Production Manifold applications. spacer spool usually has the same nominal end connections. spacer spool identification consists of naming each end connection and the overall length (outside of end connection face to outside of end connection face).


Featurers of Drilling Adapters Flange Spacer Spool

1) Made from high-strengh alloy and processed specially with heating treatment.

2) Designed and manufactured with reference to API 6A technical specifications.

3) Fit for Hydrogen sulfide H2S resistant service, manufactured with reference to NACEMR-0175 technical specifications.

4) Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.

5) All stell tanks are welded with staintess stell for long-term anti-corrosion.

6) Used for high-pressure drilling, in conjunction with flat valve for preventing blowout and connecting BOP.
