9 5/8" CEMENT BASKET WITH SHORT ROUND THREADS, OILFIELD CEMENTING TOOLS PATEL BASKET FOR OILFIELD TOTAL LENGTH 24 1/2"

Cement Basket Description of Oilfield Cementing Tools:

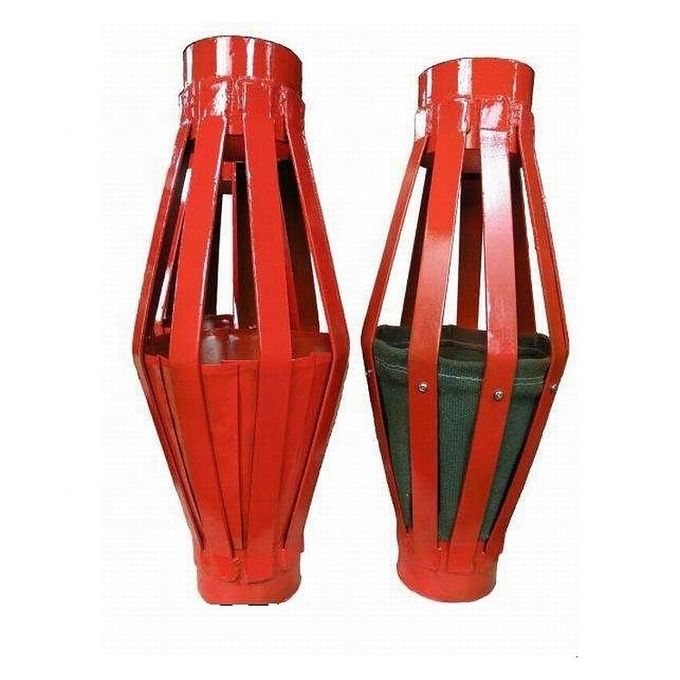

Cement Basket is an effective aid in retaining and supporting the cement where weak formations and stage cementing is encountered. It is designed with Flexible Bow Springs, heat-treated under controlled conditions for maximum strength and uniformity, are welded to slip-on collars and overlapping metal fins for flexibility and strength to support long columns of cement during primary cementing operations.

The cement basket can restrict the downward migration of cementing fluids. They are usually installed above lost circulation zones, under stage tools, or near surface when a top cementing job is planned.

Cement Basket Features:

1. Non-welded, pressed by punching, high strength.

2. Compared with single bow centralizer, the restoring force is higher while the starting force and running force are lower.Therefore, it can be run in vertical, highly-deviated and horizontal wells.

3. Hinged design allows convenient field installation.

4. Can be unfolded and stacked flatly, saving storage and transportation cost.

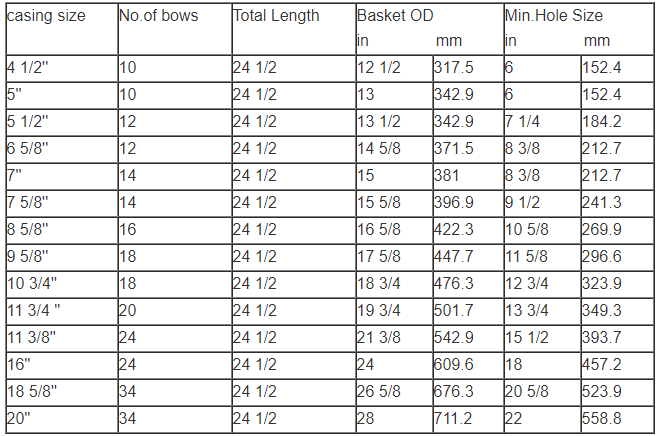

1. Available in sizes 4-1/2" to 20"

2. Slip on and hinged type

3. Metal or canvas fins infilling

4. Welded or non welded bow 5. Open and full type
