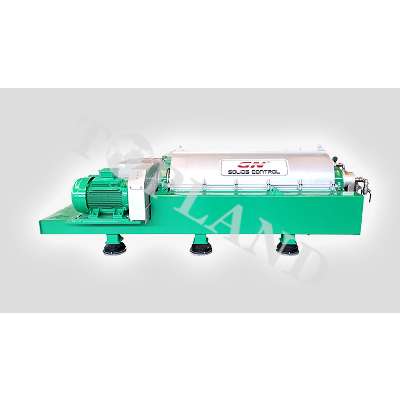

GNLW454ET-VFD

DECANTER CENTRIFUGE;BOWL SIZE: 450MM (18INCH) 890MM (74.5INCH);MAX. G FORCE: 3084 G;BOWL SPEED: 3500RPM;L/D RATION: 4.2;MAIN MOTOR: 45KW;BACK MOTOR: 15 KW;BEACH ANGLE: 8.5° DRIVE TYPE: VFD+PLC+ HMI

US$ *6850.87SET

Model/PN: GNLW454ET-VFD

Brand: GN

Standard: API

Lead Time: 90 days

Warranty: 12 Months

Place of Origin: China

Payment Method: T/T

Application: Oilfields equipments & Spares

Packaging: Export Standard Packing

HS code: 8431499900

Purchase Quantity

Add to Wishlist



Product Details

The full name of the decanter centrifuge is the horizontal screw decanter centrifuge, which is a widely used equipment in the field of industrial solid-liquid separation. According to the characteristics of different materials in different industries, GN decanter centrifuge is divided into dewatering, separation, and clarifying decanter centrifuge. With centripetal pump technology, GN decanter centrifuge can also realize the 3-phase separation of liquid, liquid, and solids.

GN Decanter Centrifuge Features

Series/TypeBeach AngleCentrifuge Applicable Material Features
T Series Dewatering Type8.5°T series dewatering type decanter centrifuge is usually used to remove liquid from solid phase materials. It is designed for easy separation material include large particle size, high density difference of solid and liquid, low viscosity, high concentration, high treatment capacity and higher dryness than clarity. The materials like sludge or wastewater containing fine particles usually need to be added with flocculants to gather the fine particles condensed into large ones, and then dewatered with T series decanter centrifuge.
Y Series Separation Type15°Y series separation type decanter centrifuge combines the advantages of T series dewatering centrifuge and C series clarifying centrifuge. It is designed not only for the clarity of liquid phase after separation, but also the dryness of solid phase. Y Series separation decanter centrifuge is especially suitable for fine soft material separation. It is usually used in soft materials which are difficult to separate. It suits for material of small particles, small density difference in solid-liquid, large viscosity and small concentration.
C Series Clarifying Type20°C series clarifying type decanter centrifuge is generally used for materials that are difficult to separate, have small particles, small solid-liquid density differences, moderate viscosity, moderate concentration, and require high clarity of clear liquid.

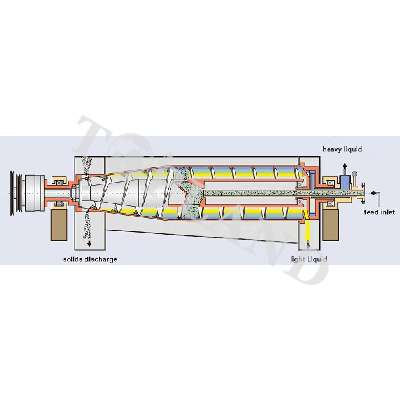

SX Series 3-Phase TypeAccording to materialThe design of 3-Phase horizontal decanter centrifuge is mainly used for solid-liquid-liquid 3-phase separation. It is required that the solid phase is heavier than the liquid phase, the two liquid phases are Immiscible with different densities.

As a leading manufacturer of decanter centrifuges, GN pays attention to product quality and considers the long-term benefits of users. In the selection of raw materials for decanter centrifuges, high-quality centrifugal casting or forging stainless steel materials are used, and for wearing parts, hard alloy protection is used. GN high-end CNC lathes, CNC centers, and CNC gantry milling machines can better ensure the machining accuracy of centrifuge parts. In terms of the dynamic balance of the decanter centrifuge, in addition to the ordinary low and medium speed dynamic balance, GN also applies a high speed dynamic balance process, which can dynamically balance the centrifuge screw and bowl at the actual working speed of the centrifuge.
