DRILLING DRAWWORKS PARTS JC40 JC50 JC70 ROPE GUIDER ROPE ARRANGE, BRAND BOMCO DRAWWORKS ROPE GUIDER

Topland is an integrated supplier specializing in businesses related to the oil and natural gas industries, which was established in 2008.From its birth to the present day, we maintain our status as one of the world’s largest distributors, producers and traders. With a long track record of supplying premium equipment and components with superior quality, we have positioned ourselves as the PREFERIENTIAL choice for clients who want access to Chinese manufacturing with proven integrity and value-added service.

Drilling Drawwork Parts JC70 Rope Guider Rope Arrange

T105-001.00 Wireline clampφ38

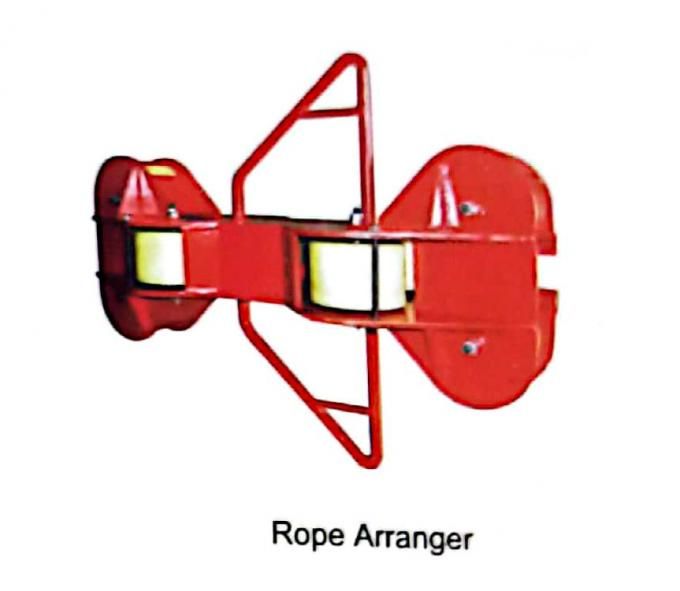

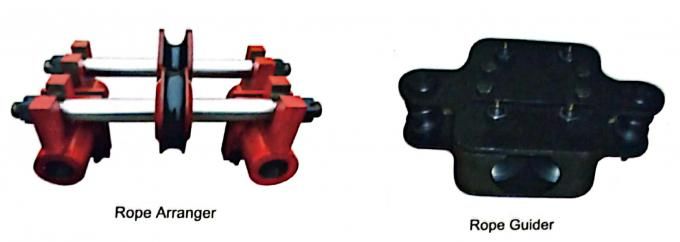

The new-style applicable device can achieve automatic rope arrangement, ease labor intensity, improve quality of rope arrangement and prolong the service life of steel rope It is a kind of automatic and mandatory mechanical rope arrangement device. The output gear set is installed on the ends of the drum, chain wheel drive and bevel gear drive put in rotation the two reversing bevel gears that embed on the same transmission shaft which is connected with lead screw through safety clutch. Wheel set for rope arrangement is amounted on the lead screw, two reversing bevel gears are installed on the slide combination device of its transmission shaft, with the slide combination device controlling its moving towards left and right through shifter fork, and the action for the two cylinders is controlled by two mechanical control valves and a reversing valve.
