180MM LINER FOR BCF-1600

BI-METAL LINER LINER FOR BPMMP TRIPLEX MUD PUMP MODEL BCF-1600, SIZE:180MM LINER FOR BCF-1600 WITH API CERTIFICATE

US$ *78.82EA

Model/PN: 180MM LINER FOR BCF-1600

Brand: NOV

Standard: API

Lead Time: 30 days

Warranty: 12 Months

Place of Origin: China

Payment Method: T/T

Application: Oilfields equipments & Spares

Packaging: Export Standard Pack

HS code: 8431499900

Purchase Quantity

Documents Download

Add to Wishlist



Product Details

Bomco/National/Gardner Denver/Ideco Mud Pump Spare Part Cylinder Bimetal Liner

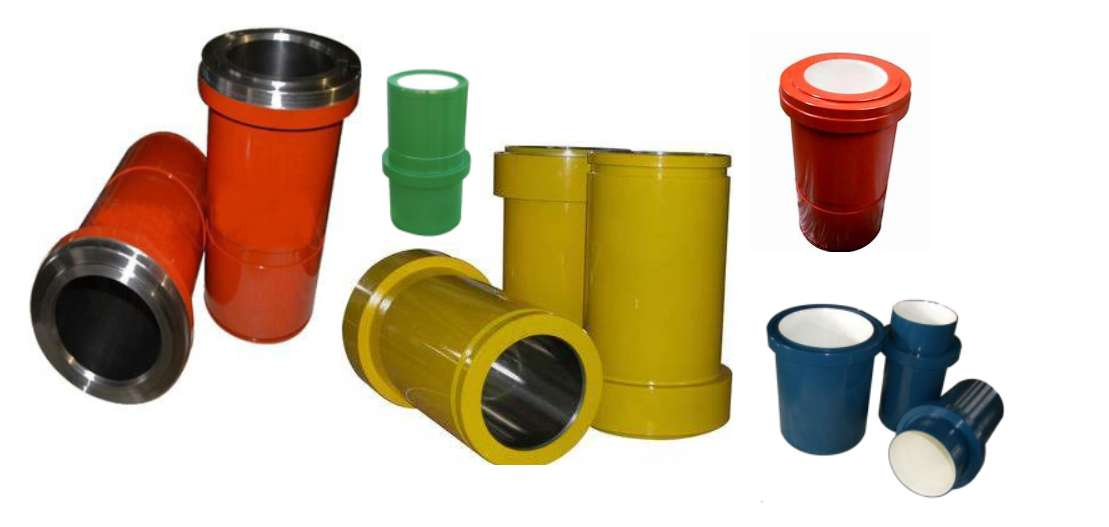

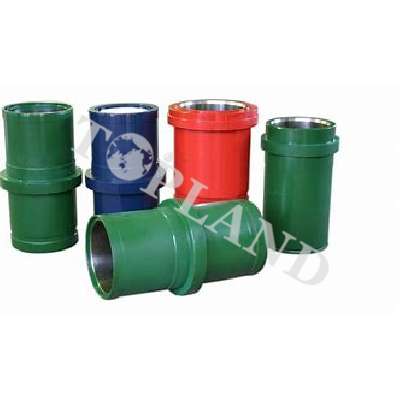

Topland supply mud pump spare parts like mud pump liner including zirconia ceramic liner and high chrome bimetallic liner, Mono-metal Liner, fluid end module, valve and seats, piston, piston rod, pony rod etc. parts for mud pump, we can also customize and machine as your drawing.



Mud pump liner for mud pumps:

1. Strictly manufactured according to API-7K Standard and passed the ISO9001-2000 international quality system authentication.

2. Reached the requirement of OEM products quality, and replace the OEM products in the same industry.

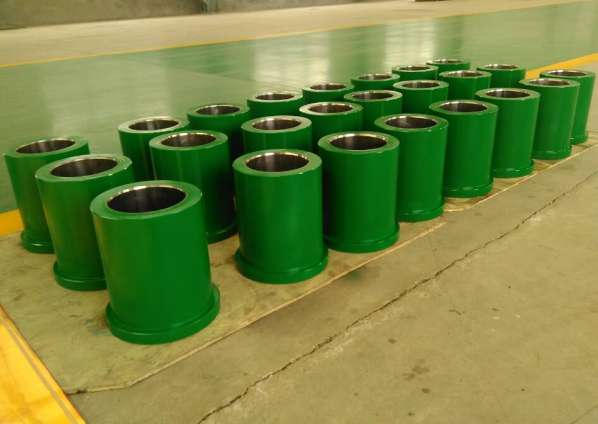

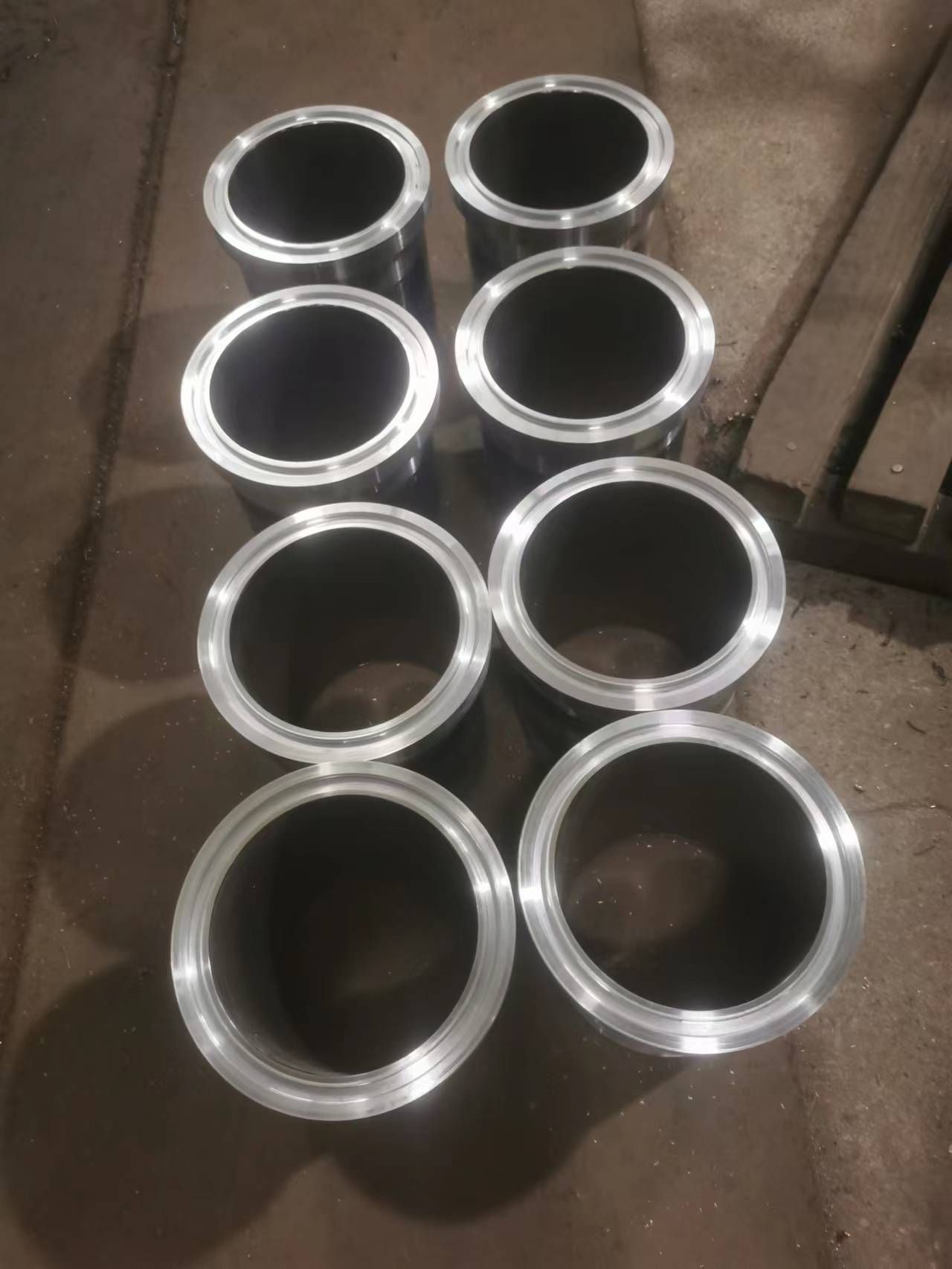

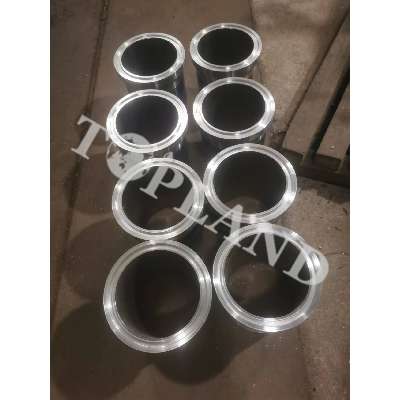

High Chrome Sleeve Liner The outer hull, or body, of the liner is a high strength forging. Premium uses forgings exclusively to ensure the consistent quality. The sleeve is centrifugally cast in the Premium facilities by skilled craftsmen. It has the maximum amount of chrome for the base metal and Premium adds molybdenum to increase the hardness depth. The sleeve is then inserted into the hull at a tightness that exceeds its counterparts. The liner is rated to match the pressure rating of the pump per liner size. -Rated for all drilling operations up to 5,000 PSI and 7500 PSI -Bore hardness is 62 - 69 Rockwell -Plip design to prevent inner sleeve slippage -Extremely long service life






We provide the following liners and much more:

EMSCO: F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600,D-375, D-700;

GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11;

IDECO: T–500, T–800, T–1000, T–1300, T–1600

NATIONAI: 7P–50, 8P–80, 9P–100, 10P-130, 12P–160, K-700, K-700A, K-500, K-500A,

OILWELL: A–350PT, A–560PT, A–600PT, A–850PT, A–1100PT, A–1400PT, A–1700PT

OMEGA: Opi1000; LS: 3NB-800, 3NB-1000, 3NB-1300, 3NB1300C, 3NB-1300C;

QZ: Sl3NB-1300, Sl3NB-1300A, Sl3NB-1300B, Sl3NB-1600.





PARTNO.DESCRIPTIONPARTNO.DESCRIPTION
1291280Discharge Module, Studded1291085Piston Rod Clamp
1290338Suction Module, Studded1291090Crosshead,R.H.& Center
1290174Seal Retainer1291165Liner Bushing
1290175Back Up Ring1291166Liner Clamp
1290178Wedge Adjusting Screw1291182Intermediate Rod Wiper Seal
1290181Wedge Retaining Spring1291190Liner Spray Manifold
1290307Valve Cover1291194Intermediate Rod Baffle
1290308Threaded Ring1291276Sub Rod
1290315Wedge Adjusting Screw Washer1291277Piston Rod
1290342Discharge Connector1291286Discharge Spacer,Studded
1290343Discharge Connector Adapter1292140alve Guide Holder
1290344Suction Module & Wear Plate Seal1292141alve Guide Insert
1290345Discharge Spacer Seal1540126Valve Cover Gasket
1290357Wear Plate1590051Suction Manifold Seal
1291015Crossheadi,R.H.& Center2410031-348Rectangular Packing
1291017Crosshead Liner2410031-427Rectangular Packing
1291028Crosshead Pin6908033Ring Joint Gasket
