BQ13

P/N : BQ13 , PIN EMERGENCY SUPPORT FOR HYDRAULIC DISC BRAKE PSK BEINJING, API 7K HYDRAULIC DISC SPARE PARTS FOR DRAWWORKS

US$ *67.36EA

Model/PN: BQ13

Brand: PSK

Standard: SY/T 6727-2014

Lead Time: 28 days

Warranty: 12 Months

Place of Origin: China

Payment Method: T/T

Application: Oilfields equipments & Spares

Packaging: Export Standard Pack

HS code: 8431499900

Purchase Quantity

Add to Wishlist



Product Details

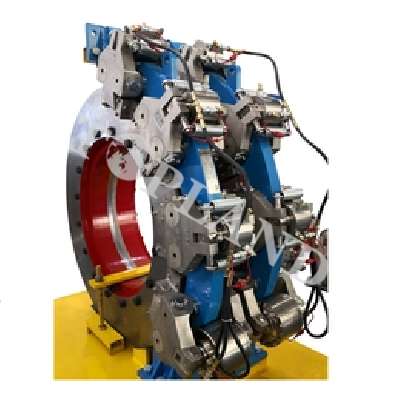

PS series hydraulic disc brake device is an integrated product of mechanical, electrical and hydraulic, which is an important part of the winch. PS series hydraulic disc brake device consists of three parts:Brake actuator, hydraulic station and operating table. They are connected by hydraulic lines.

The hydraulic disc brake device is mainly composed of three parts: brake actuator, hydraulic station and operating table.

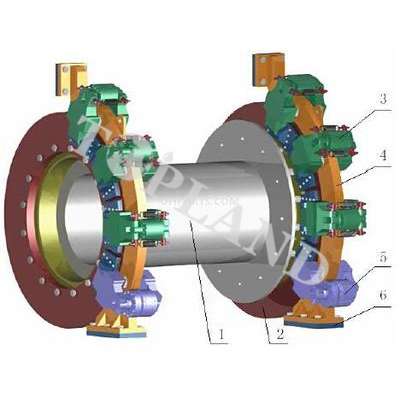

The brake actuator mainly includes four parts: working caliper, safety caliper, brake disc and caliper frame.
The working caliper are mainly composed of: brake block, caliper body, pin shaft, lever, strut, semicircular retaining ring, pin shaft II, cylinder end cover, cylinder block, tension spring, rear end cover.


The safety gear is mainly composed of: brake block, caliper body, pin shaft, lever, strut, semicircular retaining ring, pin shaft, piston, cylinder end cover, cylinder, lock nut, adjusting nut and pin.
Brake discs are divided into three types according to the structure: water-cooled, air-cooled and solid brake discs.
The clamp frame is the base of the actuator, on which the working clamp and safety clamp are installed.
The hydraulic station includes: fuel tank assembly, pump set, control block assembly, refueling assembly, electric control box, etc.

        API 7K Hydraulic Disc Brake Spares For Oil Rig Drawworks 0     API 7K Hydraulic Disc Brake Spares For Oil Rig Drawworks 1

PSZ75-6-00 Hydraulic Power Unit
Part NamePart NO.Part NamePart NO.
Hydraulic stationBK-Zquick connector3/8BSP
Direct acting relief valveBK-F-Yplastic pipe clampTHPG1-228
Inverted pressure line filterZU.1-E25×10BD-Ppipe jointHB970
one-way valveBK-F-Dpipe jointJB966
nut90251000Rotary Line FilterSP-06×25
Screw M10×25GB70-85Pressure gauge 0-16MPaYN60-III
Stud bolt M10×50MECC STANDARDPressure measuring hoseHFH2-P1-2-P-1.5
Nut M10MECC STANDARDNext-door straight-through pipe jointJB97422
Connector body M14×1.5/ M22×1.5JB984Pipe joint 22/ G1/2″JB966
Pressure measuring connector G1/4″/M16PT-7Reducer 22/2822/28
High pressure ball core globe valveBK-F-G1Explosion-proof motor B35YB100L1-4W
High pressure hose assembly 221-600KAJB1885-77High pressure ball core globe valveBK-F-G3
High pressure ball core globe valveBK-F-G2PVC pipe with reinforcing ribsd20mm
hand pumpQH-25screwGB5780-86
High pressure ball core globe valveQJH-15GExplosion-proof electric control boxEXX
AccumulatorNXQ-F6.3/200boltGB5780-86
Straight return oil filterRFA-40×10YboltGB5780-86
coolerKMCL-3Y04Sleeve flange90261001
Liquid level thermometerYW2-150High pressure hose assemblyJB1885
Pipe joint M22/ ZG3/4″JB966Plum couplingML2
air filterQUQ2Fuel tank 90LTank90L
Explosion-proof electric heaterBGY2-120/1Plunger pumpA10V
O-ring ￠75×3.1GB1235-76pipe jointJB966.4.00
Screw M8×18GB70-85Connector bodyJB984
oil block90251002Screw M16×45GB70-85
oil block902510000000000linker bodyJB984
Connector body262004High pressure hose assemblyJB1885
Quick connector 1/4BSPHA050200Hydraulic station box90252000



API 7K Hydraulic Disc Brake Spares For Oil Rig Drawworks 2
