1.MODEL :QY140J
2.THE WORKING PRESSURE : 21000 PSI

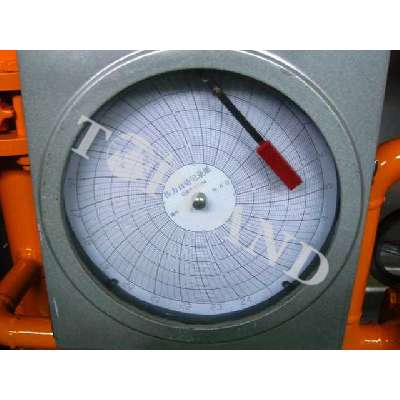

• CIRCULAR TYPE PRESSURE VERSUS TIME CHART RECORDER
SHOULD BE AVAILABLE IN ADDITION TO THE PRESSURE GAUGE WITH
READING IN PSI (CHART RECORDER TO BE M/D TOTCO OR KOOMY)
• 500 CHART TO BE PROVIDED WITH UNIT
NOTES :
* THE TEST UNIT TO COMPELETE WITH THE FOLLWING:
1. PORTABLE SKID
2. TEST FLUID RESERVOIR
3. AIR OPERATED HYDRAULIC PUMPS
4. CHECK, NEEDLE AND AIR SHUT-OFF VALVES
5. PRESSURE RELIEF VALVE
6. AIR PRESSURE REGULATOR
7. AIR LUBRICATORS AND FILTERS
8. BLEED OUTLET WITH BLEED VALVE
9. HOSES FOR AIR AT LEAST 30 METER IN LENGTH
8. WATER SUPPLY HOSE 30 METER IN LENGTH
9. HOSE FOR PUMP DELIVERY AT LEAST 15 METERS IN LENGTH
10. ADAPTER TO FIT TO CONNECT BETWEEN THE DELIVERY HOSE END
CONNECTION AND 2 INCH FIG 1502 MALE THREAD
