FZ35/35

RAM BLOW OUT PREVENTERS MODEL: FZ35/35 13-5/8" 5,000PSI SINGLE RAM BOP, CAMERON U TYPE, BOP'S ALL COMPONENT MAKE FROM FORGING, CAVITY PREPARED LARGE BONNET, BORE: 1

US$ *0109.20SET

Model/PN: FZ35/35

Brand: SANYI

Standard: API-16A

Lead Time: 30 days

Warranty: 12 Months

Place of Origin: China

Payment Method: T/T

Application: Oilfields equipments & Spares

Packaging: Export Standard Pack

HS code: 8431499900

Purchase Quantity

Add to Wishlist



Product Details

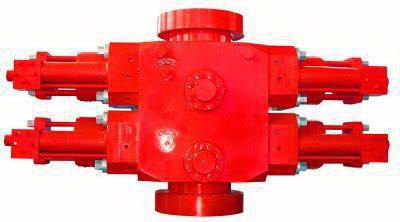

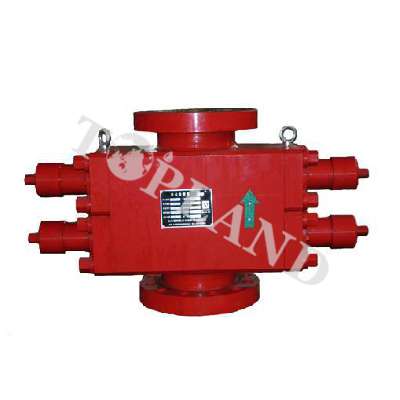

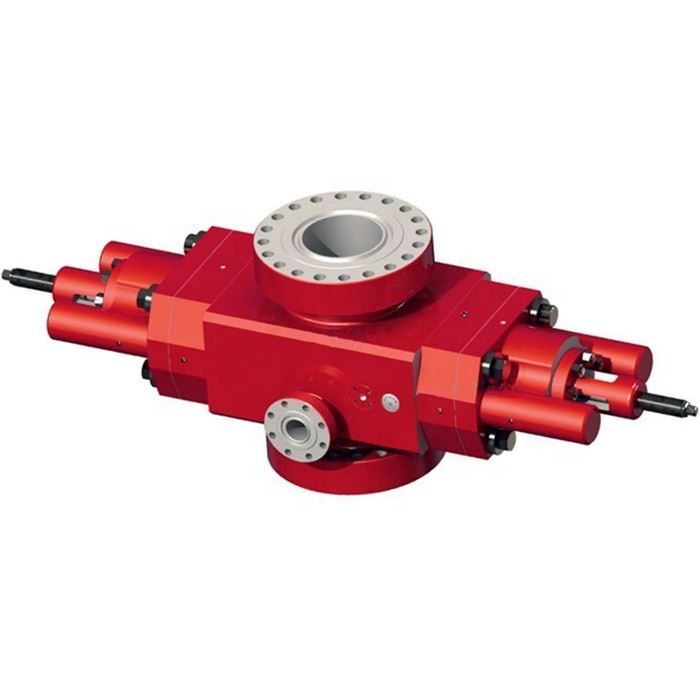

FZ35/35 RAM BLOW OUT PREVENTERS
The blowout preventer(BOP) is an essential pressure control device during driling and operations, as it serves to prevent the uncontrolled leakage of oil/gas from the wells. We also have annular BOP, single ram BOP and double ram BOP. The BOP rams are manifold, including: blind ram, pipe ram, shear ram and variable diameter ram.

*According to the number of ram installed in each set, ram BOP can be divided into: Single ram, double ram and three ram BOP, which are respectively installed with one ram, two rams or three rams.
*According to the ram opening and closing method, ram BOP can be divided into manual locking and hydraulic locking.
*According to the different opening and closing method of bonnet, ram BOP can be divided into two forms: Rotating bonnet ram BOP and linear bonnet ram BOP. For the rotating bonnet ram BOP, when opening or closing bonnet, the bonnet rotates on the hinge sear fastened on the body, the ram cam cavity shape of such BOP is rectangle.
*For the linear bonnet ram BOP, when opening or closing bonnet, the bonnet makes linear motion along the two bonnet opening and closing plunger rods fastened on the body, the ram cavity shape of such BOP is elliptic.
Connection types:The BOP are offered with studded, flanged and hubbed top and bottom connections. The sizes of flanges, bolts,clamps and ring grooves all conform to API 16A and GOST standards.
